Description

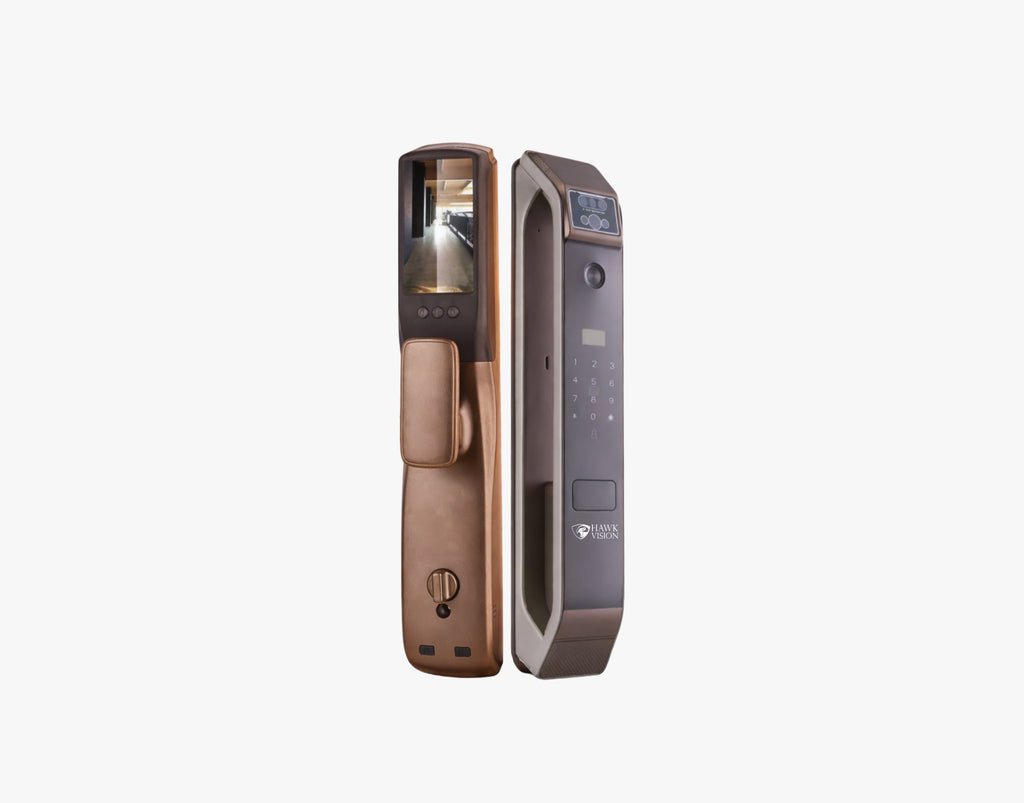

The Hawk Vision HV-SDL-F70-M Smart Door Lockis an advanced smart security lock designed for modern homes, apartments, villas, offices, hotels, and commercial spaces. Built with a durableAluminum Alloybody andstainless steel mortise, this premium smart door lock provides7-way accessthrough palm, face, fingerprint, card, password, mechanical key, and HawkSmart mobile app.
The HV-SDL-F70-M includes a 2MP camera, supports up to250 fingerprints,250 cards,100 passwords, and up to50 face + 50 palmusers. It is powered by a4200 Mah lithium batteryand supports fast fingerprint identification inless than 1 second. The lock also includes adoor bell function,low battery alarming, intelligent voice navigation, and emergency unlocking with a mechanical key.
This smart door lock supports WiFi ModuleandRemote Moduleone at a time, and is suitable for doors with40–120mm thickness. Its secure latch is designed to help protect against break-in attempts, while the system automatically exits after8 secwithout any operation for added convenience.
Website: www.hawkvisionindia.com
Key Features
Premium smart door lock with 7-way access
Palm, Face, Fingerprint, Card, Password, Key & App access
HawkSmart mobile app support
2MP camera / 2 million pixels
Aluminum Alloy material body
Stainless steel mortise
Fingerprint capacity: 250
Card capacity: 250
Password capacity: 100
Face + Palm capacity: ≤50 Face + 50 Palm
Fingerprint identification time: ≤1s / <1s
Optional 500DPI fingerprint sensor
Password length: 4–10 digits
Door bell function
Low battery alarming
Low voltage alarm with LED indication
Mechanical key emergency unlocking
WiFi Module and Remote Module supported, one at a time
Intelligent voice navigation for lock setting
System exits automatically after 8 sec without any operation
Secure latch can protect from any break-in attempts
Suitable for door thickness: 40–120mm
Product Specifications
Specification
Details
Model No.
HV-SDL-F70-M
Product Type
Smart Door Lock
Materials
Aluminum alloy
Mortise
Stainless steel
7-Way Access
Palm, Face, Fingerprint, Card, Password, Key & App (HawkSmart)
Verification Type
Fingerprint, MiFare card, OTP, Password, mechanical key and mobile app
Users
≤250 Fingerprint + Card + Password, ≤50 Face + 50 Palm
Fingerprint Capacity
250
Password Capacity
100 (6–8 digits)
Card Capacity
250
Camera
2mp / 2 million pixels
Voice Prompt
English
Fingerprint Sensor
Optional (500DPI)
Fingerprint Identify Time
<1s
Finger Print Identification Time
≤1s
Fingerprint Verify Mode
01:N
Fingerprint False Rejection Rate
<0.15%
Door Bell Function
Yes
Low Battery Alarming
Yes
Low Voltage Alarm with LED Indication
Yes
Power Supply
4200 Mah lithium battery
Working Current
<250 mA (Strong drive capability)
Current Consumption
<55mA
Relative Humidity
20% to 93%
Working Temperature
-20°C–60°C
Operating Temperature
-20°C ~60°C
Door Thickness
40–120mm
Password Length
4–10 Digits
Modules Supported
Wifi Module, Remote Module (One at a time)
Emergency Unlocking
A mechanical key can unlock in case of emergency
Auto Exit
System exits automatically after 8 sec without any operation
Secure Latch
Secure latch can protect from any break-in attempts
Website
www.hawkvisionindia.com
