Description

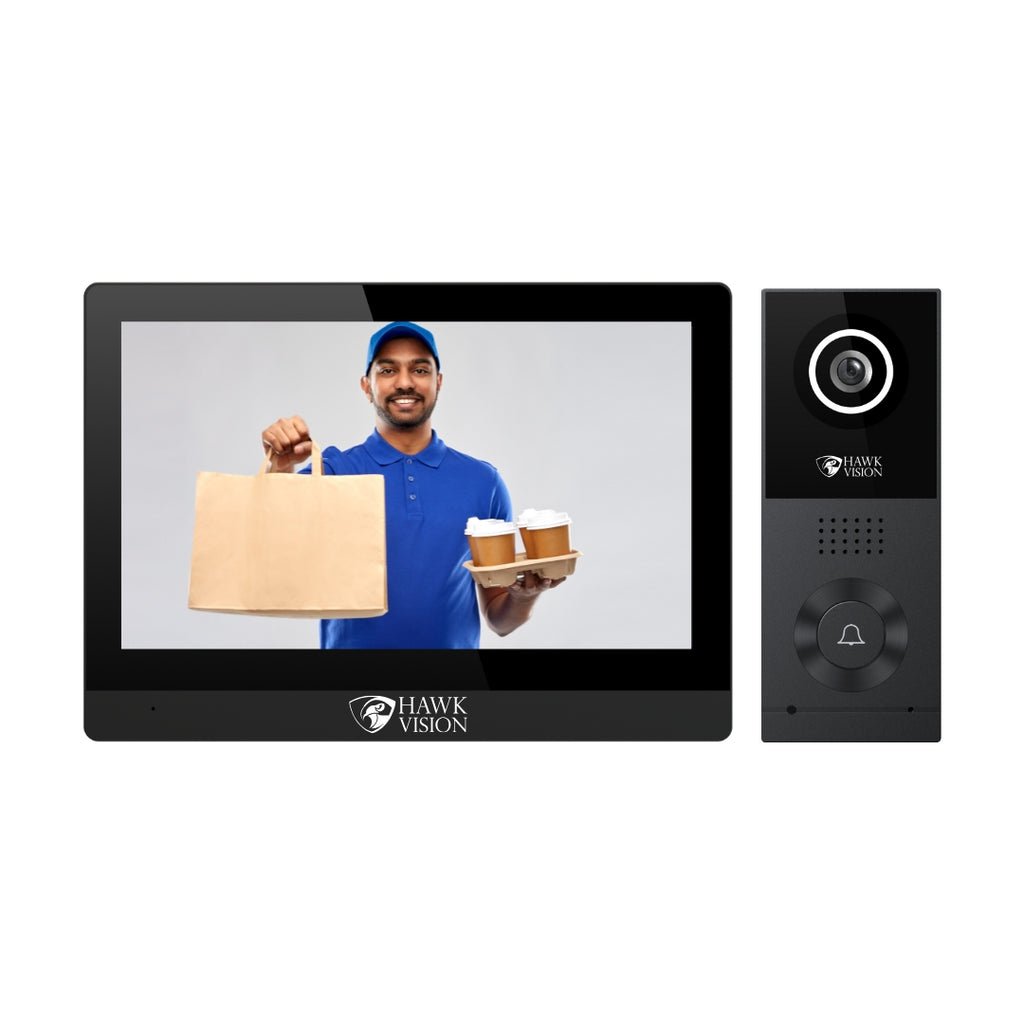

The Hawk Vision HV-IPK-VL-1002 10″ IP Video Door Phone is a smart and reliable video intercom solution designed for modern homes, apartments, offices, villas, and security-focused properties. Built with a 10″ IPS capacitive touch screen, 1080P FHD video resolution, Wi-Fi support, and mobile app remote unlocking, this IP video door phone helps users monitor visitors, communicate clearly, and manage entry access with convenience.
The system includes advanced indoor and outdoor features such as video intercom, auto monitoring, leave message option, motion detection notification, and remote unlocking via the HawkSmart mobile app. With support for multiple outdoor units, monitors, IPC cameras, and alarm sensors, the HV-IPK-VL-1002 is suitable for both residential and commercial security installations.
The outdoor unit comes with a 2MP FHD 1080P camera, 120° wide camera view, IR LED night vision, IP65 water resistance, and noise suppression with echo cancellation, making it ideal for clear visitor identification in day and night conditions. The system also supports PoE optional power, RJ45 wiring, and external storage up to 128GB.
Website: www.hawkvisionindia.com
Key Features
10″ IPS capacitive touch screen
1080P FHD video resolution
Wi-Fi support
HawkSmart mobile app support
Remote unlocking via mobile app
Video intercom and auto monitoring
Leave message option
Built-in snapshot and video recording
External storage support up to 128GB
Supports 4 outdoor units and 4 monitors
Can connect 2 IPC cameras and 8 alarm sensors
2MP FHD outdoor camera
120° wide camera view
IR LED night vision
IP65 water resistance
Noise suppression and echo cancellation
RJ45 / PoE wiring support
Surface mount installation
Indoor Unit Specifications
Specification
Details
System
Linux
Screen Size
10″ TFT, Capacitive IPS Touch Screen
Screen Resolution
1024 × 600
Video Resolution
1920 × 1080, 1080P
Connection
2.4G Wi-Fi on monitor, Cat5/Cat6 between outdoor and monitor
App
HawkSmart
Leaving Message
Support
Remote Unlocking
Remote unlocking via mobile app
Notification to Mobile Phone
Call notification, motion detection notification forward to mobile
Alarm Sensor
8
Alarm Sensor Type
NO/NC
RAM
DDR2 128MB
Flash Memory
16MB
External SD Card Support
Yes, Max. 128GB Class 10
Image Storage
Yes, inbuilt memory max. 80–100 images
Video Storage
Yes, auto and manual
Video Storage Capacity
Yes, Max. 120s
Protocol
TCP/IP, RTSP, ONVIF
Operation Mode
Touch Screen
Working Mode
At home / Leave home / Sleep Mode
Detection
Motion Detection
Max. Indoor Unit
8 (1+7)
Max. Outdoor Unit
4 (2+2)
External CCTV Support
2, 720P IP CAM / 1080P IP CAM
Working Consumption
Standby <7W, working <10W
Certification
CE, FCC, ROHS
Dimensions
205(W) × 152(H) × 28(D) mm
Outdoor Unit Specifications
Specification
Details
Camera Type
2MP HD camera
Camera Resolution
2MP
CMOS
1/2.9″
Viewing Angle
120 degree horizontal, 60 degree, 155 degree diagonal
Night Vision
IR lighting
Audio Intercom
Full two-way intercom
Audio Quality
Noise suppression, echo cancellation
Audio Compression
G.711 U/64 Kbps
Audio Input
Built-in omnidirectional microphone
Door Lock Release
Support 2 locks
Unlocking Port
NO COM NC / 12V GND
Power Input
PoE / 14.5V DC (BIS) from indoor screen
Wiring Port
RJ45 / PoE
Exit Button
Support
Damage Proof
IK08
Waterproof
IP65
Mounting
Surface Mount
Speaker Volume
Adjustable
Temperature
-10°C to +50°C
Humidity
<80%
Dimensions with Bracket
68(W) × 159(H) × 31(D) mm
Dimensions without Bracket
62(W) × 153(H) × 28(D) mm
