Description

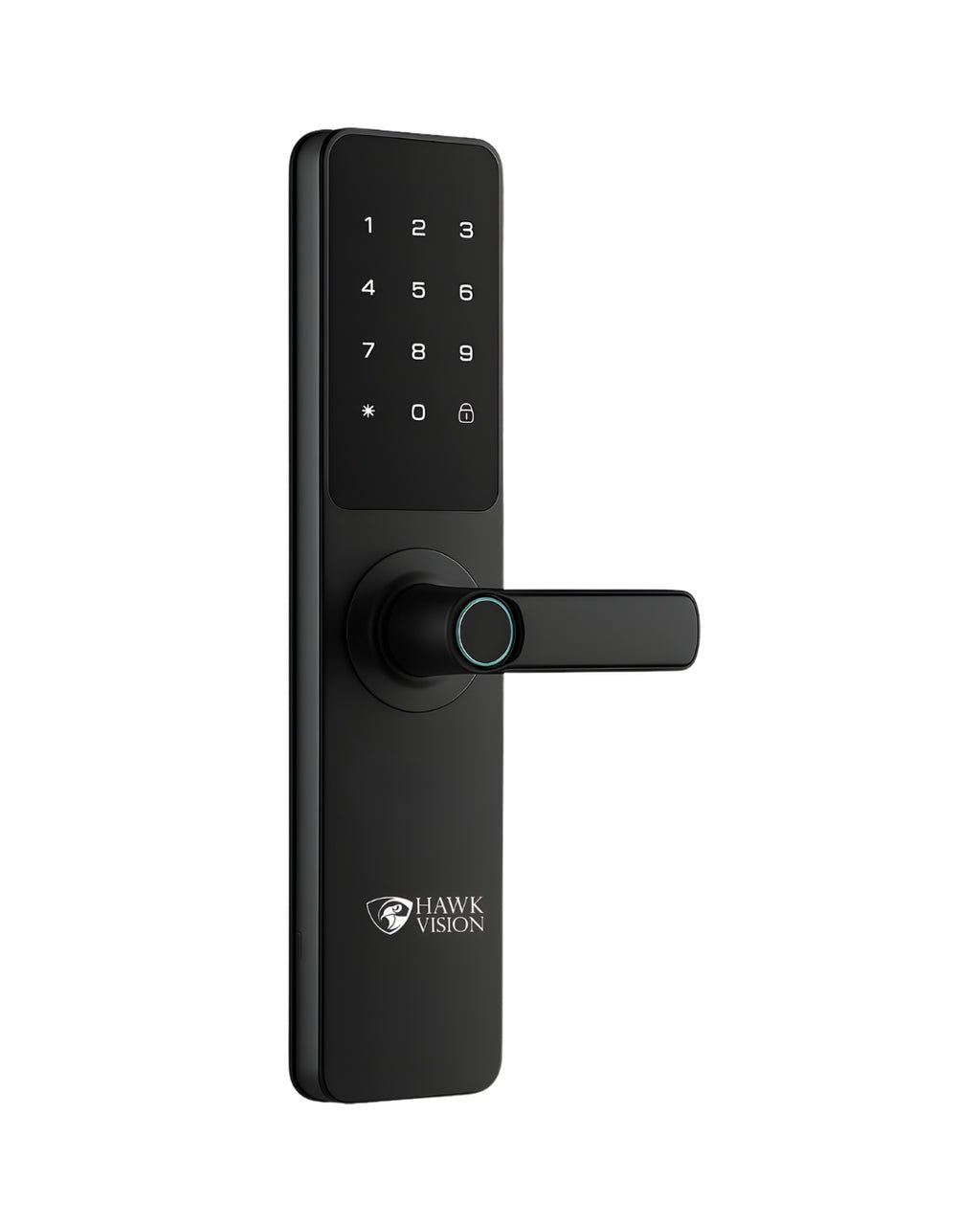

The Hawk Vision HV-SDL-F23 Smart Door Lock is a modern digital security lock designed for secure and convenient access control. Made with a durable Zinc Alloy body and stainless steel mortise, this smart door lock supports 5-way access through fingerprint, card, password, mechanical key, and HawkSmart mobile app.
With support for up to 100 fingerprints, 100 passwords, and 100 cards, the HV-SDL-F23 is suitable for homes, apartments, offices, villas, and commercial spaces. It offers fast fingerprint identification in less than 1 second, optional 500DPI fingerprint sensor, English voice prompt, low voltage alarm with LED indication, and emergency unlocking with a mechanical key.
The smart lock supports WiFi Module and Remote Module one at a time, with optional VDP connectivity. It is designed for doors with 38–50 mm thickness and operates in a wide temperature range from -10°C to 60°C. The system also exits automatically after 8 seconds without operation, and the secure latch helps protect against break-in attempts.
Website: www.hawkvisionindia.com
Key Features
Smart door lock with 5-way access
Fingerprint, Card, Password, Key & App access
HawkSmart mobile app support
Zinc Alloy material body
Stainless steel mortise
Supports up to 100 fingerprints
Supports up to 100 passwords
Supports up to 100 cards
Fingerprint identification time: <1s
Optional 500DPI fingerprint sensor
Password length: 6–8 digits
Low battery alarming
Low voltage alarm with LED indication
English voice prompt
Mechanical key emergency unlocking
Optional VDP connectivity
WiFi Module and Remote Module supported, one at a time
Secure latch for break-in protection
Suitable for door thickness: 38–50 mm
Product Specifications
Specification
Details
Model No.
HV-SDL-F23
Product Type
Smart door lock
Materials
Zinc Alloy
Mortise
Stainless steel
5-Way Access
Fingerprint, Card, Password, Key & App (HawkSmart)
Verification Type
Fingerprint, MiFare card, OTP, Password, mechanical key and mobile app
Fingerprint Capacity
100
Password Capacity
100 (6–8 digits)
Card Capacity
100
Users
≤100-fingerprint + card +Password
Voice Prompt
English
Fingerprint Sensor
Optional (500DPI)
Fingerprint Identify Time
<1s
Fingerprint Verify Mode
01:N
Fingerprint False Rejection Rate
<0.15%
Finger Print False Acceptance Rate
<0.00004%
Low Battery Alarming
Yes
Low Voltage Alarm with LED Indication
Yes
Power Supply
4.5V–6.5V (4PCS AA Alkaline Battery)
Working Current
<250 mA (Strong drive capability)
Current Consumption
<200mA
Battery Life
5000 times (approx 6 months)
Relative Humidity
20% to 93%
Working Temperature
-10°C–60°C
Operating Temperature
-10°C ~60°C
Door Thickness
38–50 mm
VDP Connectivity
Optional
Modules Supported
Wifi Module, Remote Module (One at a time)
Emergency Unlocking
A mechanical key can unlock in case of emergency
Auto Exit
System exits automatically after 8sec without any operation
Secure Latch
Secure latch can protect from any break-in attempts
Website
www.hawkvisionindia.com
